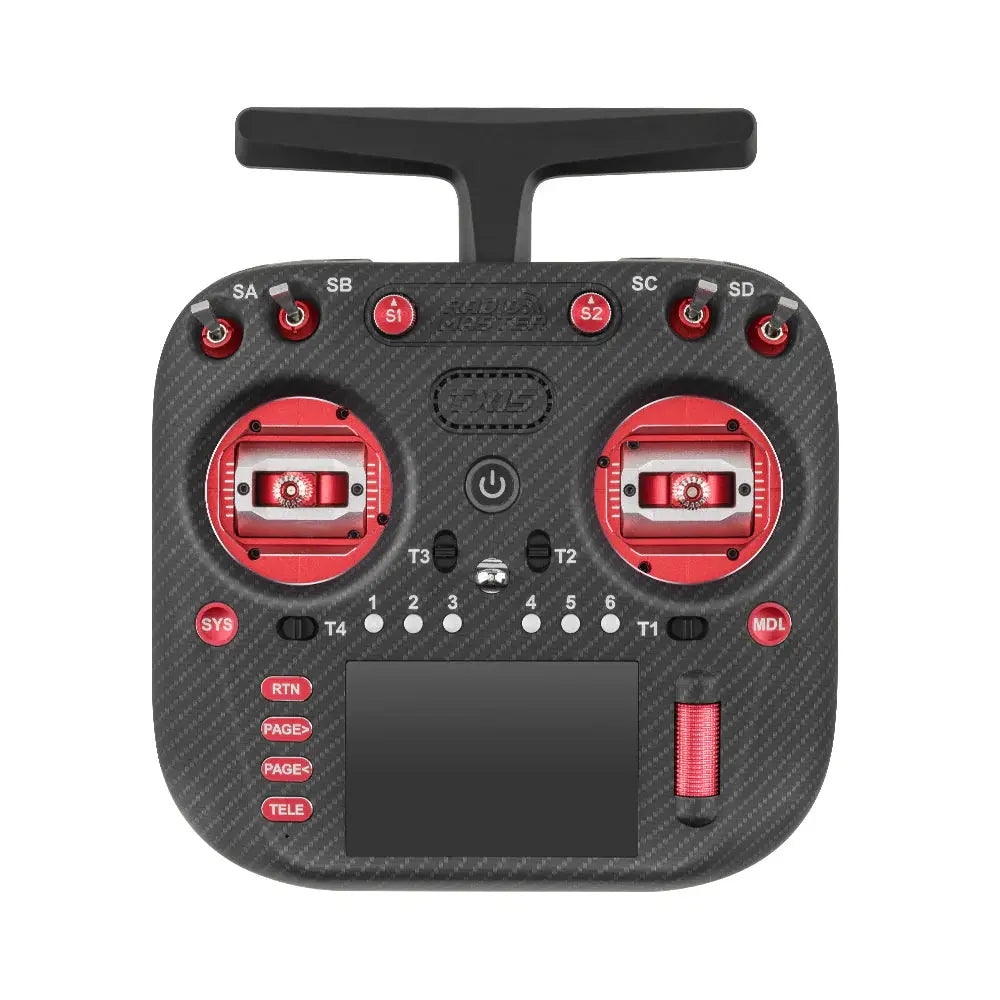

Radiomaster TX15 max
Expected Delivery on - .

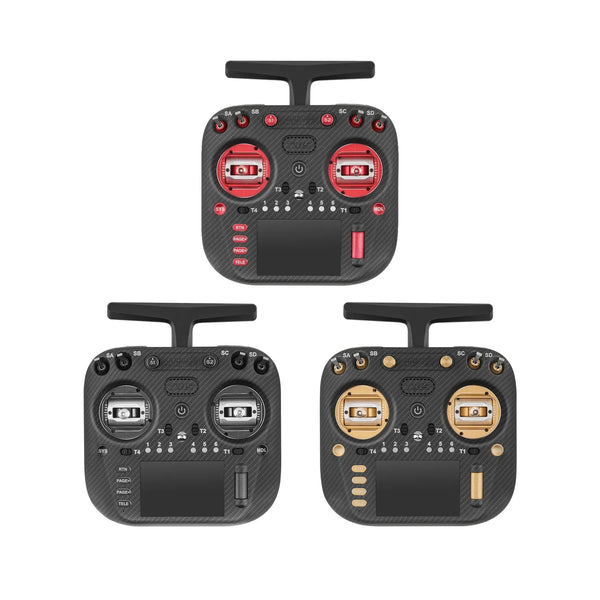

- Rosso - $259.99

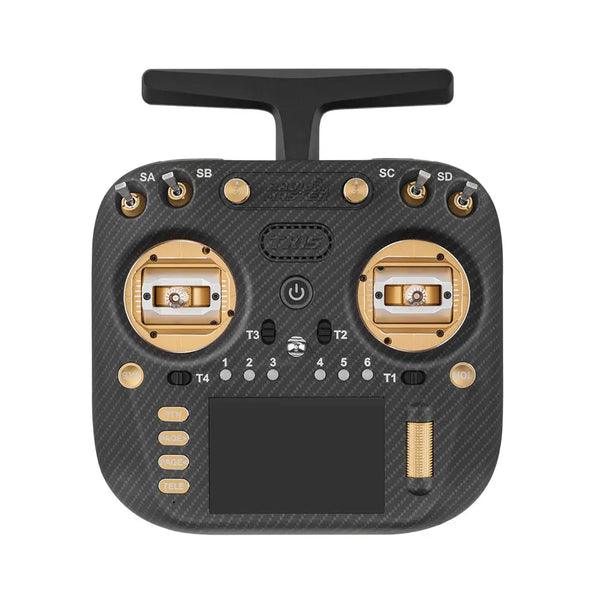

- Oro - $259.99

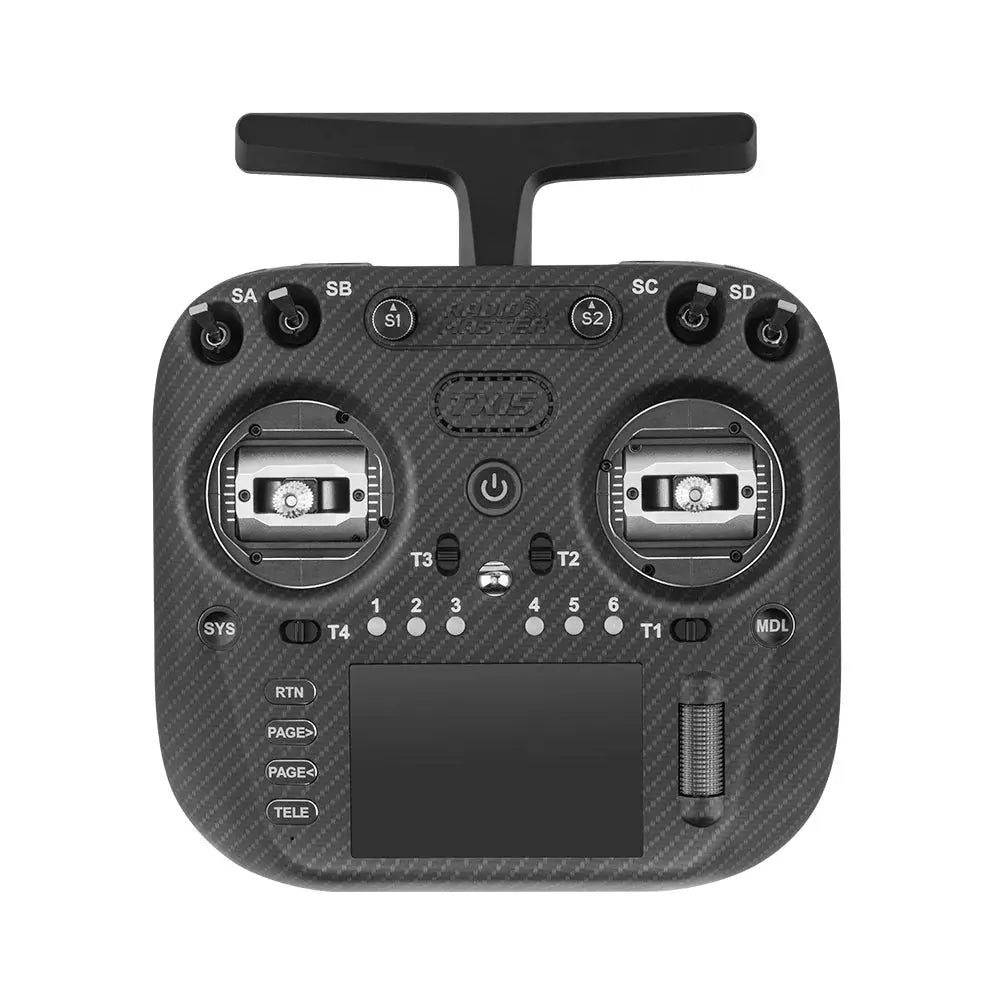

- Nero - $259.99
Radiomaster TX15 max
PRODUCT DETAILS

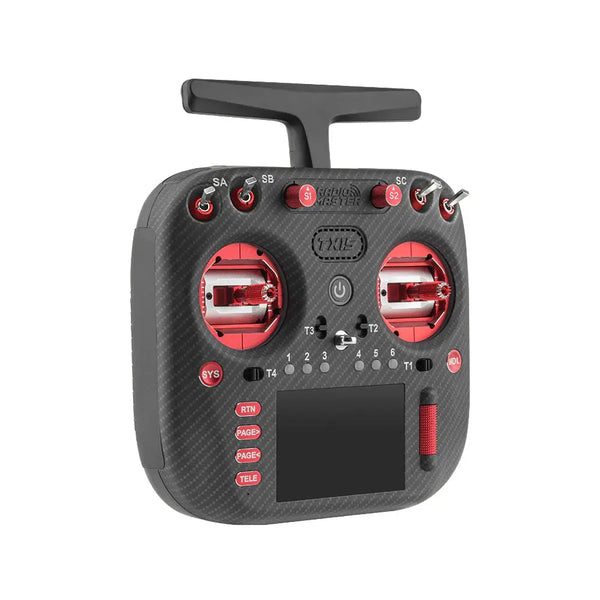

Radiomaster tx15 max
Il RadioMaster TX15 Max Radio Controller ELRS alza l’asticella nel controllo remoto FPV, combinando eleganza, potenza e personalizzazione. Dotato di un robusto processore STM32 H7 e del firmware open‑source EdgeTX, offre un controllo fluidissimo e script ultra‑veloci. Il cuore del collegamento è il modulo ExpressLRS integrato, operante su bande 2.4 GHz e Sub‑G 900 MHz, per un segnale a lunghissima portata e massima affidabilità. Il display touchscreen IPS da 3,5″ ad alta luminosità garantisce un’interazione intuitiva in ogni condizione di luce.
Caratteristiche
-
STM32 H7 + EdgeTX (≥ v3.0.0)
-
ExpressLRS integrato dual-band (2.4 GHz / 900 MHz)
-
Display touchscreen 3,5″ (480×320, IPS, 600 nits)
-

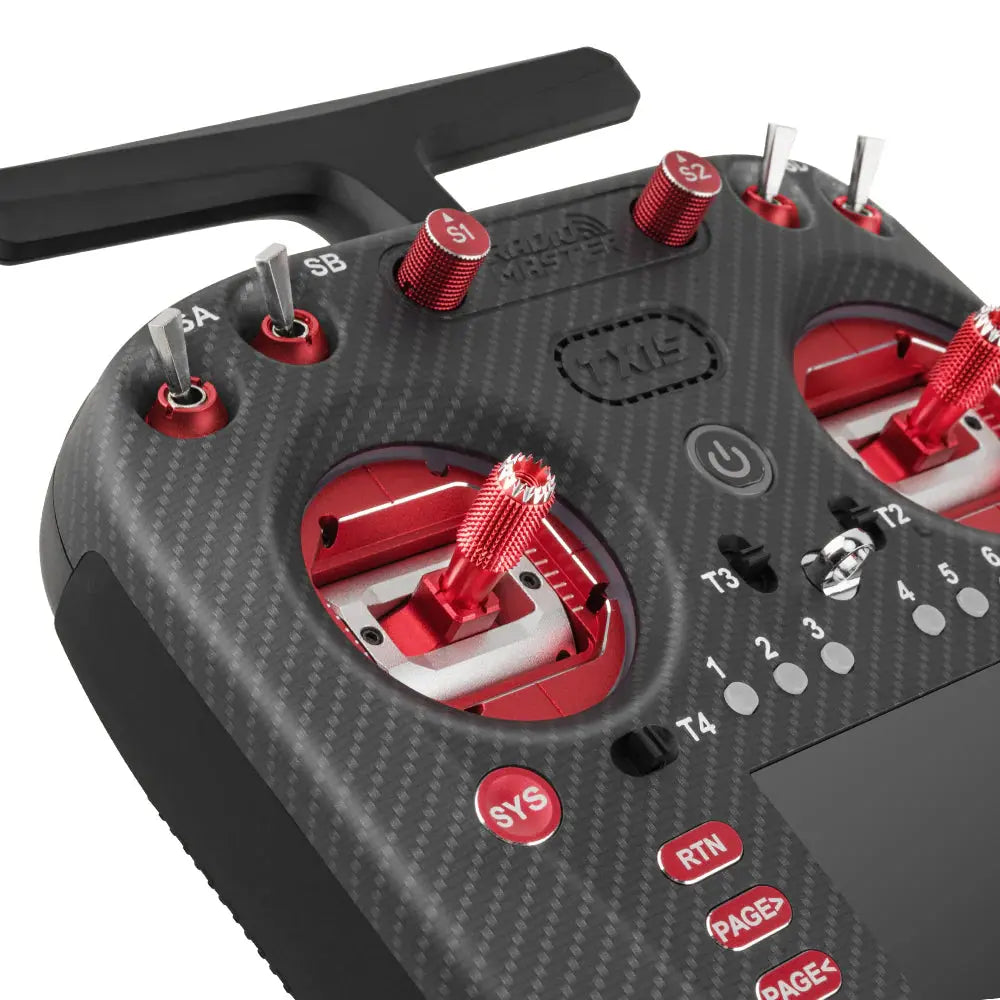

Gimbal AG02 CNC Hall sensor, travel regolabile
-
Anello RGB LUA-controllable
-
Raffreddamento attivo: ventola + dissipatore
-
Microfono integrato, giroscopio ICM‑42607‑C (TiltX/Y)
-
Memoria: 4 GB interna + Micro‑SD (espandibile)
-
Antenna pieghevole (gain 2 dB, potenza regolabile)
-

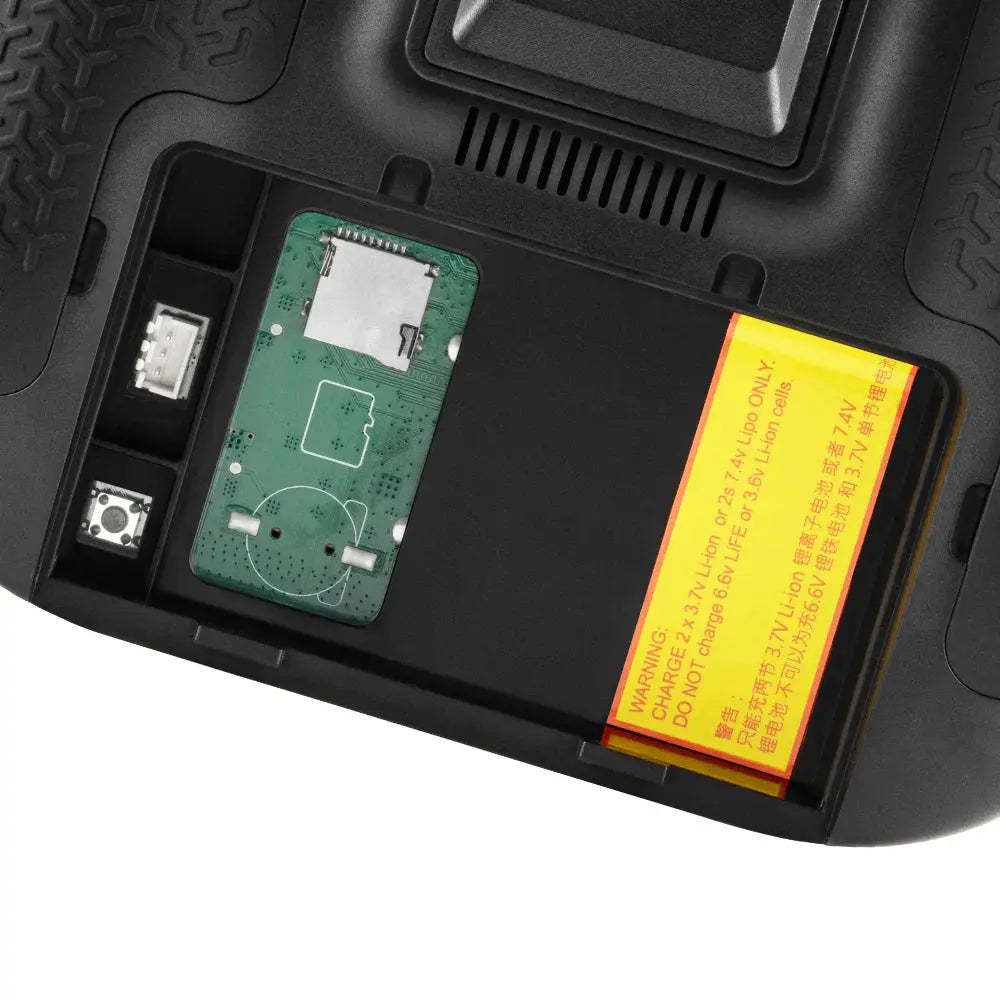

Alimentazione: 2S LiPo, 2×18650 o 21700 (non incluse)
-
USB‑C, modulo bay JR
-
Consumo massimo: 875 mA
-
Fino a 16 canali
Specifiche
| Specifica | Dettaglio |
|---|---|
| Dimensioni | 178 × 168 × 81 mm |
| Peso (senza batteria) | 672 g |
| Display | 3.5″ IPS touchscreen (480×320) |
| RF | ExpressLRS 2.4 / 900 MHz |
| Processore | STM32 H7 |
| Firmware | EdgeTX ≥ v3.0.0 |
| Gimbal | AG02 CNC Hall sensor |
| RGB Gimbal Ring | LUA‑controllable |
| Memoria | 4 GB + slot Micro‑SD |
| Alim. | 2S LiPo / 18650 / 21700 |
| Ventilazione | Ventola + dissipatore |
| Giroscopio | ICM‑42607‑C |
| Funzioni Tilt | Telemetria, pan/tilt, trigger tilt |
Il pacchetto include
-
1 × RadioMaster TX15 Max Radio Controller
-

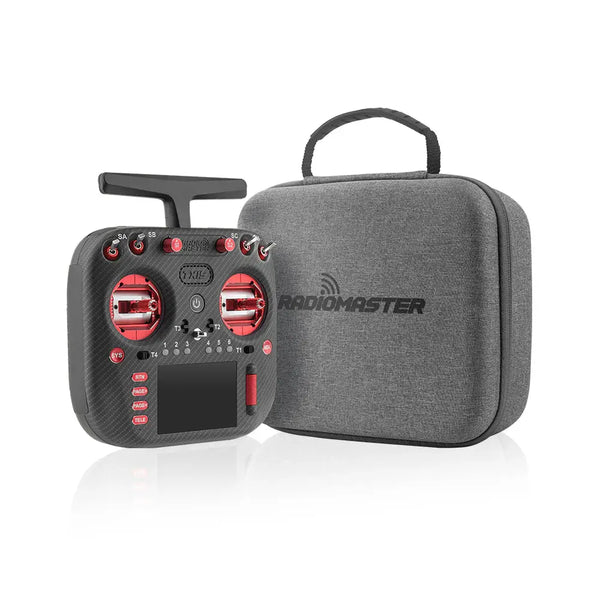

1 × Signature Carry Case
-
1 × Switch a spalla latching
-
1 × Switch a spalla momentaneo
-
1 × Vassoio batterie 18650
-
1 × Cavo USB‑C
-
1 × Proteggi schermo
-
1 × Chiave esagonale 1.5 mm
-
4 × Molle per gimbal
-
2 × Viti stick gimbal
-
1 × Set adesivi
-
1 × Manuale utente
-
1 × Carta inventario
